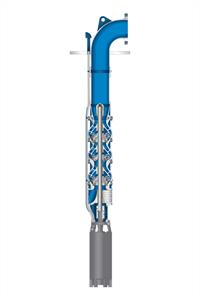

CST Submersible Turbine
The CST submersible turbine pumps are used in a variety of commercial,
municipal & industrial applications water supply is readily available
in rivers, lakes, ponds, streams or water wells. CST pumps are industry
leading from a feature & benefits standpoint. This heavy wall, vitreous
enamel lined bowl assembly uses a Francis design impeller constructed
of investment cast 304 stainless steel that provides a very broad operating
range with very high efficiency. Various sizes of ductile iron motor brackets
are available with strainer and a ductile iron discharge case is standard.
Flanged and o-ring bowls are also standard making maintenance very easy.
Threaded or flanged column assemblies are available and a wide variety
of fabricated steel discharge elbows are available. These industry exclusive
features makes this product adaptable for the power generation, municipal,
mining and oil & gas applications.
Flow & Pressure Characteristics
Flows To: 2,200 GPM (500 m³/hr)
Heads To: 2500+ Feet (762+ m)
Temperatures To: 100ºF (38ºC)
Speed Ranges: 3000 RPM To 3600 RPM
Size Range
5″ (125 mm) – 11+” (280+ mm)
Features & Benefits
- Vitreous enamel, glass lined, cast iron bowl/investment cast 304 stainless steel impeller
- Flanged bowl connections for easy assembly & disassembly
- Francis, enclosed, high efficiency impeller with broad band efficiency
- Bronze bowl bearings standard with many other options available (cast iron, marine, metal or phenolic backed (bronze, rubber or stainless), carbon graphite, composite & grease packed)
- Unique “CCR” models that feature larger diameter shafts with extended bearing length for higher pressure and horsepower applications (8″, 10″, 12″ & 14″ sizes) as well as integral sand lugs to protect the bowl from abrasive wear
- Optional bowl & impeller wear rings
- O-ring bowl connection standard through 16″ diameter
- Threaded & flanged discharge case options
- Open or enclosed lineshaft options
- Threaded or flanged lineshaft options (1045, 416 stainless steel, 316 stainless steel, Nitronic 50, 17-4PH stainless)
- Threaded or flanged column assemblies
- Fabricated discharge elbows available in 90º orientation (150#, 300#, 600# & 900# ratings)
- Unique motor bracket design that has flow path above motor bracket bearing keeping contaminants out of the shaft bore
Available Metallurgies
- Cast iron, ductile iron, all bronze, all 304 stainless steel, all 316 stainless steel, all Cd4MCu, all Alloy 20, all Hastalloy (B&C), all 2205 super duplex stainless steel, all 2507 super duplex stainless steel, Cr28, all Titanium
Markets
- Chemical Processing
- Food & Beverage
- General Industry
- Irrigation & Agriculture
- Marine & Offshore
- Mining & Aggregate
- Power Generation
- Water Resources
