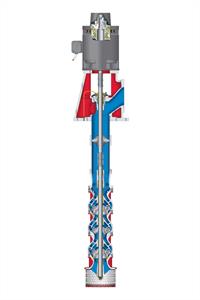

FP-CVT Vertical Turbine
The FP-CVT vertical turbine product line is one of the most engineered
fire production products available today. This product can be electric
or diesel engine driven and is available in many flows and pressures in
both 50 & 60 cycle speeds. The overall length of the vertical turbine
can be engineered to meet specific job site requirements. Packing and
product lubricated bearings round out the list of standard features that
appear in our fire pump product line. The performance is based off of
our proven CVT product line.
Flow & Pressure Characteristics
Flows To: 4,500 GPM (1,022 m³/hr)
Heads To: 376 PSI (25.9 bar)
Temperatures To: 400ºF (204ºC)
Speed Ranges: 1500 RPM To 1800 RPM
Size Range
10″ (250 mm) – 19″ (480 mm)
Features & Benefits
- Vitreous enamel, glass lined, cast iron bowl/investment cast 304 stainless steel impeller
- Flanged bowl connections for easy assembly & disassembly
- Francis, enclosed or semi-open, high efficiency impeller with broad band operating range
- Bronze bowl bearings standard
- Suction case with suction bell as an option (suction bell standard 16″ and larger)
- Standard stainless steel basket strainer
- Standard bowl wear rings
- O-ring bowl connection standard through 16″ diameter
- Threaded discharge case standard
- Open lineshaft standard
- Threaded lineshaft standard
- Threaded column assemblies
- Cast iron or fabricated steel, high ring base discharge heads (6″, 8″, 10″ & 12″)
- Optional fabricated discharge heads available in 90º orientation (300# ratings)
- Packing with lantern ring standard
- Electric or Diesel engine driven
Available Metallurgies
- Cast iron, ductile iron, all bronze, all 304 stainless steel, all 316 stainless steel, all Cd4MCu, all Alloy 20, All Hastalloy (B&C), all 2205 super duplex stainless steel, all 2507 super duplex stainless steel, Cr28, all Titanium
Markets
- Fire Protection
