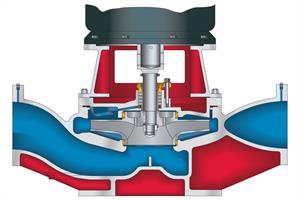

FP-KTG Vertical Inline End Suction
The FP-KTG vertical inline product line is one of the most economical fire
production products available today. This product uses an electric motor
and is available in many flows and pressures in both 50 & 60 cycle
speeds. This product is close-coupled to electric motors making it one
of the most economically priced fire pump in the industry. The performance
is based off of our proven KTG product line.
Flow & Pressure Characteristics
Flows To: 100 GPM To 1,500 GPM (23 m³/hr To 341 m³/hr)
Heads To: 190 PSI (13.1 bar)
Speed Ranges: 1500 RPM To 3600 RPM
Size Range
2.5×2.5-8 (65/20) – 8×8-16 (200/40)
Features & Benefits
- Cast iron casing/investment cast 304 stainless steel impeller
- Back pump out vanes or rear wear ring standard for hydraulic balancing
- Back pull out rotor assembly design
- Standard bronze, renewable case wear ring
- Internal plan 1 seal/packing flush
- Packing & lantern ring standard
- Francis, enclosed, high efficiency impeller with broad band operating range
- 125# suction/125# discharge flange with 250# cast dimensions standard
- Drilled & tapped suction & discharge flanges for easy connection to system piping
- Suction & discharge gauge connections standard
- Turned, ground and polished 420 stainless steel shaft standard
- Dual oil lip seal construction
- C-Face motor brackets for easy assembly
Available Metallurgies
- Cast iron, 304 stainless steel fitted, all 316 stainless steel fitted
Markets
- Fire Protection
