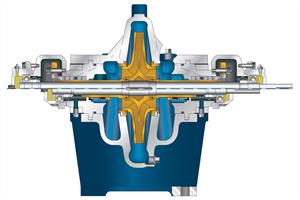

SP Splitcase Pump
The SP splitcase pumps are used in a variety of commercial, industrial
& municipal applications. This heavy wall, Francis design, enclosed,
bronze impeller provides a very broad operating range. The casing features
an exclusive
Thru-Bore line boring machining operation that greatly simplifies manufacturing
and maintenance. Bearing & bearing housings can be inspected and/or
replaced without removing the top part of the casing. The rotor assembly
also features completely removable and replaceable packing housings/seal
chambers with a replaceable vortex suppressor. The centerline of the pump
has also been increased to ensure that suction and discharge flanges do
not interfere with the pump foundation. Each model features 250# cast
dimensional flanges and 420 stainless steel shafting. These industry exclusive
features makes this product adaptable for the building trades, HVAC, cooling
tower, steel mill, mining, power generation, municipal and oil & gas
applications.
Flow & Pressure Characteristics
Flows To: 30,000+ GPM (6,813 m³/hr)
Heads To: 550 Feet (168 m)
Temperatures To: 300ºF (149ºC)
Speed Ranges: 500 RPM To 3600 RPM
Size Range
2.5×3-10 (65/24) – 40×48-38 (1000/98)
Features & Benefits
- Cast iron casing/bronze impeller
- Exclusive Thru-Bore casing that allows packing housings/seal chambers to be removed with the rotor assembly
- Bearing housing can be inspected and/or replaced without removing casing top
- Bearings can be inspected and/or replaced without removing casing top
- Grease lubricated bearings with optional oil lubrication
- Oil lip sealed bearings with optional bearing isolators
- Fully removable rotor assembly
- Packing housings/seal chambers are removable with rotor assembly
- Packing standard with optional CPS-Pumps exclusive Carbon/Silicone-Carbide/Viton mechanical seal or optional single or double cartridge mechanical seal
- Multi-vane, enclosed, high efficiency impeller with broad band operating range
- Bronze, API style, stepped case wear rings
- 125# suction/125# discharge flange with 250# cast dimensions standard
- Drilled & tapped suction & discharge flanges for easy connection to system piping
- Suction & discharge gauge connections standard
- Turned, ground and polished 420 stainless steel shaft standard
- 50,000+ hour minimum L10 bearing life standard
- Heavy duty, 304 stainless steel shaft sleeves with exclusive external o-ring groove
- Single row inboard and single row outboard bearings with optional double row at either location
Available Metallurgies
- Cast iron, ductile iron, all bronze, all 304 stainless steel, all 316 stainless steel
Markets
- Building Trades
- Chemical Processing
- Food & Beverage
- General Industry
- Irrigation & Agriculture
- Marine & Offshore
- Mining & Aggregate
- Power Generation
- Oil & Gas
- Pharmaceutical
- Pulp & Paper
- Water Resources
