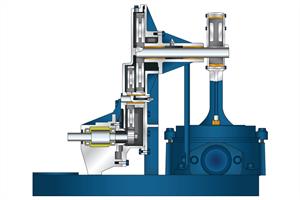

SPD Self-Primer Diaphragm

The SPD self-primer diaphragm pumps are used in a variety of applications where durable, solids handling is a must, even in applications where the pumped fluid is extremely vicious. The SPD product line features a simplex or duplex diaphragm orientation, a discharge port clean-out, an integral 30:1 gear reduction housing and a flex coupled power frame for coupling to nearly any type of driver. Diesel, gasoline, air, PTO and electric motors are available from a driver standpoint. This fluid end is designed to be used in the most aggressive of applications with solids passing capability through 3-¾ inches (95 mm).

Flow & Pressure Characteristics

Flows To: 240GPM (55 m³/hr)
Heads To: 50 Feet (15 m)
Temperatures To: 120ºF (49ºC)
Solids Passing: To 3.75 inches (95 mm)
Speed Ranges: 1500 RPM To 1800 RPM

Size Range

3×3 (80/80) – 4×4 (100/100)

Features & Benefits

Case iron casing
Positive displacement diaphragm with large solids passing capability
Pulsation damper port standard
Discharge port clean-out standard
Can run dry indefinitely
3″ or 4″ NPT suction/3″ or 4″ NPT discharge ports
No dynamic seal present in pump (no packing or mechanical seal)
30:1 gear reduction housing (1800 RPM input and 60 RPM output)
Power frame with Timken bearings that can be coupled to any driver type (electric motor, gasoline engine, Diesel engine, power take off (PTO), air motor

Available Metallurgies

Cast iron, ductile iron, all 316 stainless steel, all Cd4MCu, all Alloy 20, All Hastalloy (B&C), all 2205 super duplex stainless steel, all 2507 super duplex stainless steel, Cr28, all Titanium

Markets

Chemical Processing
Food & Beverage
General Industry
Irrigation & Agriculture
Marine & Offshore
Mining & Aggregate
Pulp & Paper
Water Resources
