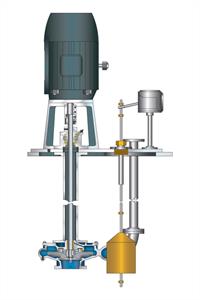

VS-CNC Vertical Non-Clog Sump

The VS-CNC vertical sump pumps are used in a variety of applications where submersible pumps are not a good fit. Many applications require a vertical sump pump in lieu of a submersible due to site conditions, such as large spherical solids, chemical attack, metallic solids or high temperatures. VS-CNC pumps use the non-clog CNC fluid end for hydraulic performance using a specially designed two-vane, large solids handling impeller. This heavy wall, enclosed, two-vane, 304 investment cast stainless steel impeller design provides a durable and dependable product and is perfectly suited for large spherical solids with stringy material present. This fluid end is designed to be used in the most aggressive of applications with solids passing capability through 7 inches (180 mm). The flexibility of material combinations makes this product adaptable for the steel mill, mining, power generation, municipal and oil & gas applications.

Flow & Pressure Characteristics

Flows To: 14,000 GPM (3,180 m³/hr)
Heads To: 360 Feet (110 m)
Temperatures To: 200ºF (93ºC)
Solids Passing: To 7 inches (180 mm)
Speed Ranges: 900 RPM To 3600 RPM

Size Range

3×3-10 (80/26) – 14×14-26 (350/66)

Features & Benefits

Ductile iron casing/investment cast 304 stainless steel impeller
Back pump out vanes on front & rear of impeller for hydraulic balancing
Back pull out rotor assembly design
Optional front wear plate
Heavy duty, bronze, fluted inboard head bushing that can be supplied in a variety of optional materials
Two vane, enclosed, high efficiency impeller with large solids passing capability
Rounded & tapered impeller inlet designed to pass limp, stringy solids
125# suction/125# discharge flange with 250# cast dimensions standard
Turned, ground and polished 420 stainless steel shaft standard
Separate, heavy-duty line-shaft bearing housings with fluted bronze bearing that can be supplied in a variety of optional materials
Maximum 5 foot bearing spans to minimize shaft deflection
Overall pump lengths to 25+ feet
Optional stuffing box/seal chamber for aggressive applications
Utilizes, stocked, standard C-Face motors
56C through 449TC brackets for coupling to drivers
Optional strainers

Available Metallurgies

Cast iron, ductile iron, all bronze, all 304 stainless steel, all 316 stainless steel, all Cd4MCu, all Alloy 20, All Hastalloy (B&C), all 2205 super duplex stainless steel, all 2507 super duplex stainless steel, Cr28, all Titanium

Markets

Building Trades
Chemical Processing
Food & Beverage
General Industry
Irrigation & Agriculture
Marine & Offshore
Mining & Aggregate
Power Generation
Oil & Gas
Pharmaceutical
Pulp & Paper
Water Resources
