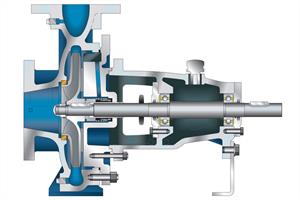

XA Flex-Coupled End Suction Pumps
The XA flex-coupled end suction product line is one of the most common
centrifugal pumps used in the industry today. This robust and highly engineered
product has many upgraded features and benefits that are optional on other
competitor offerings. This product line is very versatile and is used
in a variety of markets. Whether you are pumping clean water, high temperature
condensate or raw water, the XA product line is up to the task. Due to
the flexibility of this product line, HVAC & building trades markets
are perfect matches for this product line. Each model features 250# cast
dimensional flanges, integral suction vortex suppressor, 420 stainless
steel shafting, investment cast 304 stainless steel impeller and an oil
lubricated power frame.
Flow & Pressure Characteristics
Flows To: 24,000 GPM (5,500 m³/hr)
Heads To: 450 Feet (140 m)
Temperatures To: 350ºF (177ºC)
Speed Ranges: 900 RPM To 3600 RPM
Size Range
1.25×2-5 (32/13) – 28×32-24 (700/60)
Features & Benefits
- Cast iron casing/investment cast 304 stainless steel impeller
- Back pump out vanes or rear wear ring standard for hydraulic balancing
- Back pull out rotor assembly design
- Standard bronze, renewable case wear ring
- Internal plan 1 seal/packing flush
- Mechanical seal standard with packing & lantern ring as an option
- Francis, enclosed, high efficiency impeller with broad band operating range
- 125# suction/125# discharge flange with 250# cast dimensions standard
- Drilled & tapped suction & discharge flanges for easy connection to system piping
- Suction & discharge gauge connections standard
- 50,000+ hour minimum L10 bearing life standard
- Turned, ground and polished 420 stainless steel shaft standard
- Oil lubricated power frame with grease lubricated as an option
- Dual oil lip seal construction with bearing isolators as an option
Available Metallurgies
- Cast iron, ductile iron, all bronze, 304 stainless steel fitted, 316 stainless steel fitted
Markets
- Aerospace
- Build Trades
- Chemical Processing
- Food & Beverage
- General Industry
- Irrigation & Agriculture
- Marine & Offshore
- Mining & Aggregate
- Power Generation
- Oil & Gas
- Pharmaceutical
- Pulp & Paper
- Semiconductor
- Water Resources
